Description

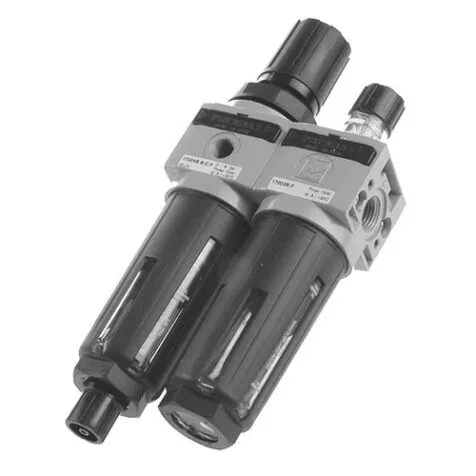

Filter – diaphragm pressure regulator with relieving
Low histeresis rolling diaphragm and balanced spool
Filtering element made of HDPE available in 3 different filtration grades (5μm, 20μm, 50μm)
Semi-automatic or automatic drain
Available in four pressure ranges up to 12 bar
Oil mist lubricator
Variable orifice size in function of the flow rate
Oil quantity regulation mechanism and
oil quantity visualization dome made of polycarbonate (PC)
Oil refill plug
Available with low level electrical sensor NO and NC
Bowls screwed to the body (Size 1)
Bowl assembly via bayonet type quick coupling mechanism with safety button (Size 2 – Size 3)
Atex certification (II 2GD o II 3GD) on request
